CH(Cable Terminator)

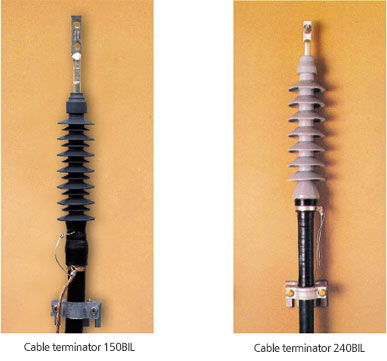

25㎸ Cable Terminator images/150BIL/250BIL
25㎸ Cable Terminator
Kyungdong’s 25kv Cable Terminator is an all-in-one contamination withstand cable terminator made for the first time in Korea in 1982 with newly developed technology. It provides outstanding insulation performance even in areas damaged by salt or pollution with its anti-pollution design (Design Registration 30-0502011).
Specifications
Rated voltage 25㎸ DC withstand voltage 105㎸ 15min
Impulse withstand voltage 150㎸/240㎸ (below 1.2x50㎶ ) RIV test below 100㎶
Applied wires 60, 200, 325㎟ Partial discharge 25.8㎸ below 5pC
Frequency withstand voltage Dry 65㎄/1min Load cycle test 43㎸/130℃(6 hour) / 30 Cycle
Dry 55㎄/6 hour Leakage distance 630㎜ / 800㎜
Wet 60㎄/10sec Applied standards IEEE 48(1996)
Product Attributes
  • The cable terminator made by Kyungdong provides outstanding insulation performance even in areas damaged by salt or pollution with its anti-pollution design (Design Registration 30-0502011).
  • As a self-contained product, it can be installed in a small space
  • It can be installed both indoors and outdoors.
  • Stress cone and wings carry outstanding electrical properties and prevent leakage current in particular.
  • High-performance isolators provide excellent insulation and last as long as the cable.
  • The silicon insulating grease and cleaning cloth are convenient to use during installation as they are contained in a special container and packaged using special coating. The cleaning solution does not evaporate even when stored for a long time.
Cable terminator 150BIL
Cable terminator 150BIL

Product structure

No Product name Material
1 Terminal Cu
2 Waterproof cap EPDM
3 Insulating housing EPDM
4 Bracket Fe

Product dimensions

Product dimensions Product dimensions(㎜) Applied wire isolator thickness(㎜)
A B C min max
60㎟ 298 77 57 24 27
Cable terminator 240BIL
Cable terminator 240BIL

Product structure

No Product name Material
1 Terminal Cu
2 Waterproof cap EPDM
3 Insulating Housing EPDM
4 Stress cone EPDM
5 Ground band SUS
6 Ground wire CU

Product dimensions

Wire thickness Product dimensions(㎜) Applied wire isolator thickness(㎜)
A B C min max
38㎟ 140 455 90 21.5 24
60㎟ 24.5 29.5
100㎟ 27.2 30.5
※ The connector must be installed by a professional with adequate construction training according to the construction manual in order to ensure quality.
