Disconnecting Switches
Application scope
For use in ambient temperature within the range of -25℃ to +40℃
Applied to a disconnector used in substations at an altitude of less than 1,000m.
Rated voltage : 25.8kv~72.5kv 60Hz
Rated current : See Types
Disconnecting Swich
Type Rated Voltage Rated Current A B C D E
SKD-V2 25.8kV 400~2000A 1000 950 125 80 500
SKD-V7 72.5kV 400~2000A 1750 1650 150 100 1000

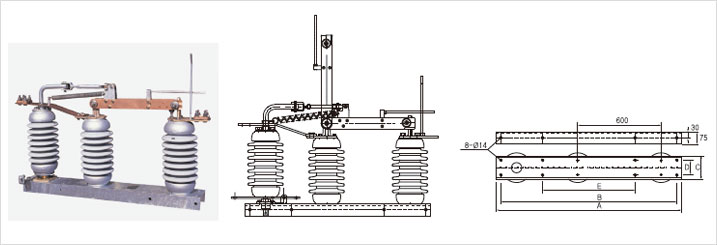

Disconnecting Switches Setting drawing

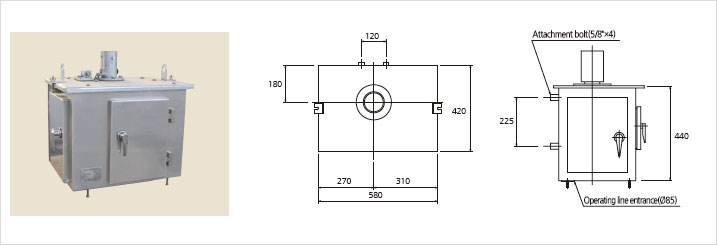

Disconnecting Swich (Motor Operating Divice)
Disconnecting Switches(Motor Operating Divice)
