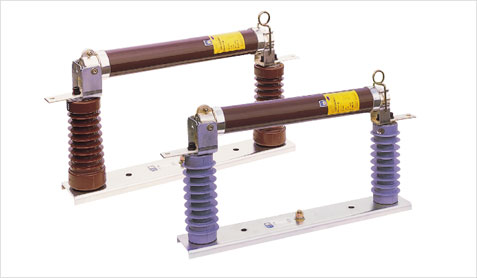

CLF (25.8kV High Voltage Current Limiting Fuses)
25.8kV High Voltage Current Limiting Fuses is economically effective and carries excellent break performance which is widely used along with other protective equipment to protect high-pressure circuits and high-voltage equipment (e.g. current transformers, condensers, etc.) from overcurrent or short-circuit current. This light weight product has a high-capacity breaking performance of 40㎄ and is optimal for protecting power receiving circuits and equipment.
Product Attributes
CAP : Ensured compatibility by adopting DIN standards, Element: Secured blocking performance through production using company-owned notching machine, Insulating tube: Used ceramic for high thermal shock resistance
  • •This product is made in Korea using 100% local technology and equipment.
  • •First product in Korea developed using the KEPCO standard voltage(25.8㎸)
  • •First in Korea to develop a non-standard compact size (reduced the fuse length by 23% to 342㎜)
  • •Adopts polymer base insulator
Specifications
Rated voltage 25.8kv
Rated frequency 50㎐ / 60㎐
Rated current 200A
Rated breaking current 40㎄
Power frequency withstand voltage
(between phases and grounds/poles)
60㎸/1min / 66㎸/1min
Impace withstand voltage
(between phases and grounds/poles)
125㎸ / 145㎸ (1.2X50㎲)
Striker type Medium
Applied standards IEC 60282-1(2005)
Electrical Properties
Types Rated voltage Rated current (A) Minimum breaking current (A) Breaking current Resistance(mΩ) Watt (W) Weight(㎏) Size(㎜)
100% 50% Length Diameter(ØA)
PF25B5(k) 25.8㎸ 5 18 40㎄ 1136 37(37) 8(8) 3.39(2.62) 442 (342) 67
PF25B10(k) 10 35 579 80(84) 16(17) 3.39(2.63)
PF25B16(k) 16 70 284 112(124) 21(21) 3.39(2.63)
PF25B20(k) 20 96 190 115(121) 21(21) 3.39(2.63)
PF25B25(k) 25 125 147 160(196) 26(28) 3.39(2.63)
PF25B31.5(k) 31.5 145 81.3 143(205) 25(22) 4.36(3.38) 77
PF25B40(k) 40 200 58.4 158(170) 26(36) 4.36(3.38)
PF25B50(k) 50 282 41.5 211(193) 31(29) 4.37(3.39)
PF25B63(k) 63 380 31.5 246(230) 37(35) 4.37(3.39)

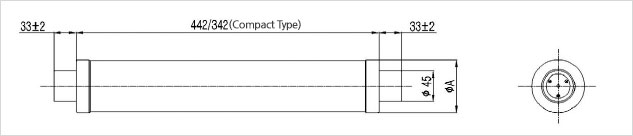

Fuse exterior
CLF Fuse exterior
