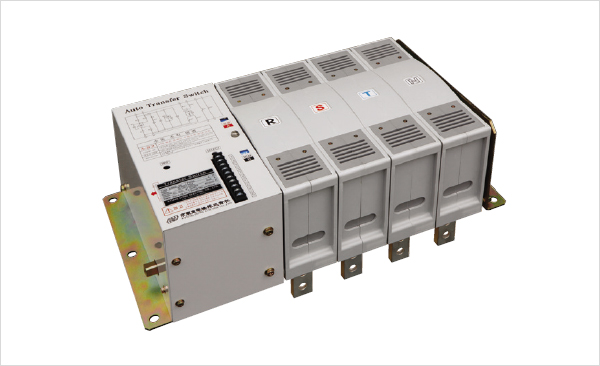

Auto Transfer Switches
Distinctive
- 1. Mold type, compact design
- This product broke away from the traditional assembly method and reduced the appearance dramatically by designing each phase into a stand-alone mold.
- 2. Intermediate shutdown
- The design allows a neutral position (OFF) using a trip device and switches after stable load and safety are secured.
- A=>off=>B , B=>off=>A , A=>off=>A , B=>off=>B A=>B, B=>A switching is also possible by using the operating instruction.
- 3. Detachable arc extinguishing chamber
- This innovative design enables it to check any wearing or damage of the contact point even during operation. The extinguishing capability is increased through an independent detachable arc extinguishing chamber.
Specification
Rated voltage(V)
| AC 660V, OR DC 125V |
Rated current(A) |
600 |
800 |
1000 |
1200 |
1600 |
2000 |
2500 |
3200 |
Number of poles (P) |
3 |
4 |
3 |
4 |
3 |
4 |
3 |
4 |
3 |
4 |
3 |
4 |
3 |
4 |
3 |
4 |
Weight(Kg) |
26 |
33 |
31 |
39 |
32 |
40 |
34 |
42 |
40 |
48 |
46 |
56 |
47 |
57 |
54 |
66 |
Operating current |
DC 110V |
14 |
16 |
16 |
20 |
16 |
20 |
16 |
20 |
20 |
24 |
24 |
30 |
30 |
36 |
36 |
44 |
AC 100/110V(RMS) |
14 |
16 |
16 |
20 |
16 |
20 |
16 |
20 |
20 |
24 |
24 |
30 |
30 |
36 |
36 |
44 |
AC 200/220V(RMS) |
7 |
8 |
8 |
10 |
8 |
10 |
8 |
10 |
10 |
12 |
12 |
15 |
15 |
18 |
18 |
22 |
Trip coil current |
AC/DC 110V = 1A, AC 220V = 0.5A |
Performance |
Rated short-time current(1 sec) |
15 KA |
15KA |
22KA |
22KA |
25KA |
35KA |
35KA |
55KA |
Short circuit peak value |
35KA |
37.5KA |
50KA |
50KA |
55KA |
60KA |
75KA |
85KA |
Switching capacity |
AC3 (10 le Making, 8 le Breaking cosθ=0.35) |
AC2 (4 le Making, 4 le Breaking cosθ=0.65) |
Operating Time |
“A”Power |
Making |
120 mS |
120 mS |
Breaking |
25 mS |
40 mS |
“B”Power |
Making |
100 mS |
120 mS |
Breaking |
30 mS |
65 mS |
Life |
Mechanical |
10,000 Times |
10,000 Times |
Electrical |
5,000 Times |
5,000 Times |
Switching frequency |
30 Times / Hour |
30 Times / Hour |
